Agfa Isolette III Rangefinder Service (2)

Click here for complete Site Map

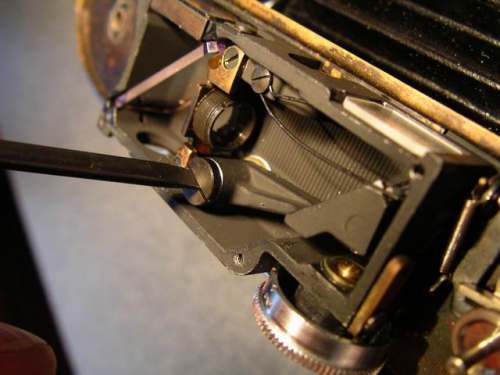

The arm has to come off, to clean and relubricate the pivot. Remove the retaining screw.

Removing the retaining screw in the pivot of the swivel arm


Next - remove the wire spring.

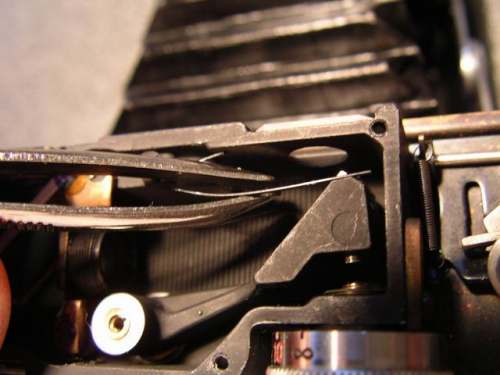

First release the tension by moving it away from the pivot arm.

First release the tension by moving it away from the pivot arm

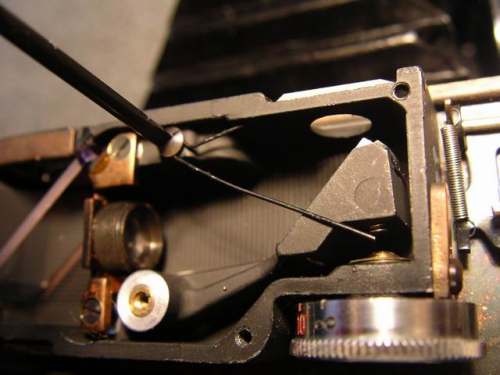

Then unscrew the retaining screw.

Then unscrew the retaining screw

Next Prontor-S page

Next Rangefinder Servicing page

First Prontor-S page

Previous Rangefinder Servicing page


Our very special thanks to Thierry Cattoor who has kindly supplied the text and pictures that make up this section.
